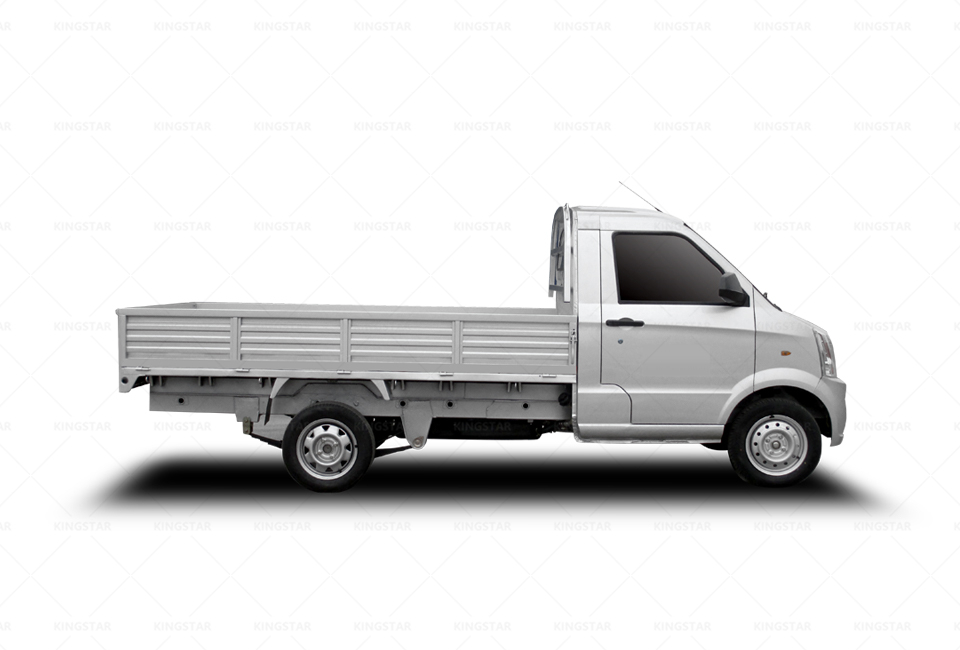

Diamond front combination headlamp, lengthened cargo box 2900cm, KD assembly introduced in Brazil, 1.3 Suzuki engines & 1.5 Mitsubishi engine technology, passed crash test in the Gulf, Former Macpherson back six leaf springs, stronger than similar products, Double-beam design improves loading capacity.






Fuel typeGasoline
Driving4x2, rear drive
DIMENSION & WEIGHOverall size(LxWxH)  (mm)4780x1635x185
Cargo box inner size  (mm)2900x1540x350
Overhang(fron/rear) (mm)580/1350
Overall height (mm)1850
Wheel base (mm)2850
Tread, front/ rear (mm)1386/1408
Ground clearance (mm)160
Curb vehicle weight  (kg)1000
Gross vehicle weight  (kg)2600
Rated payload  (kg)1000
Seating capacity  (persons)2
Fuel tank capacity  (L)45
SYSTEMGearboxManual,5 speed and 1 reverse,synchronizing
SuspensionFrontMcPherson independent suspension
Rear6pcs Parallel leaf spring and absorber
BrakeFront/ rearDisc/ Drum
Min. turning radius (m)5.5
Max. gradeability  (%)≥22
ENGINETechnology sourceSUZUKI
Type4-cylinder in line, 4-stroke, DOHC, 16-valves
Displacement  (cc)1206
Max. power  (kW)63/6000
Max. torque  (N.m)108/4000-4400
Compression ratio9.8:1
EmissionEuro 4
