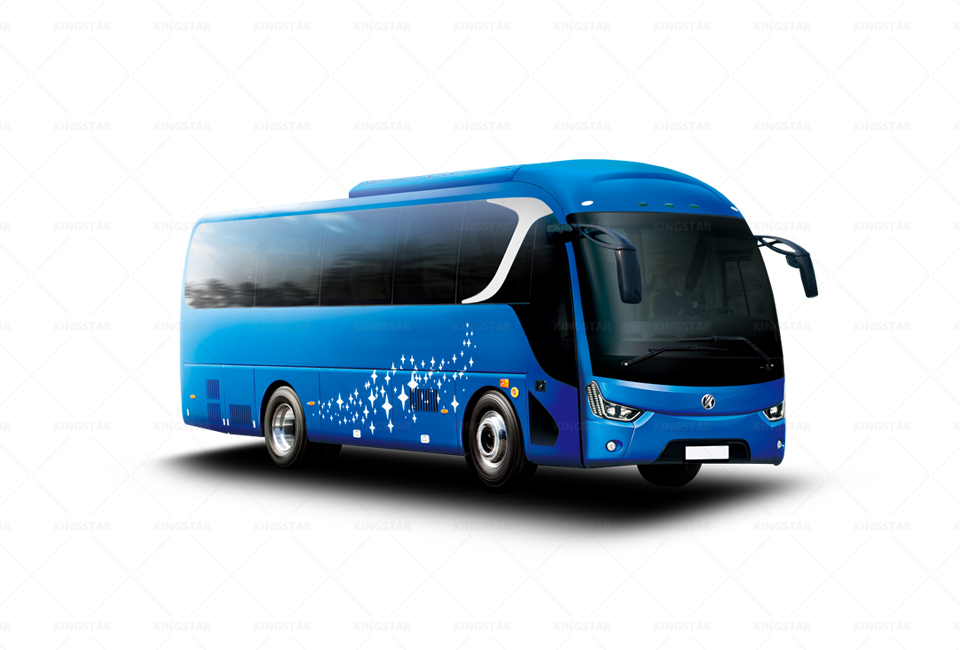

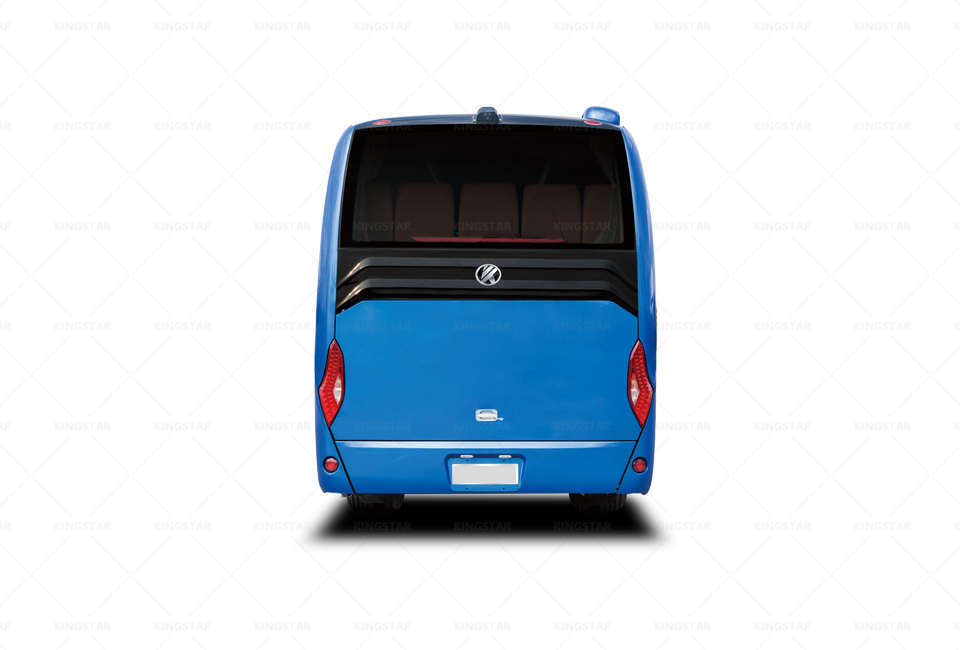

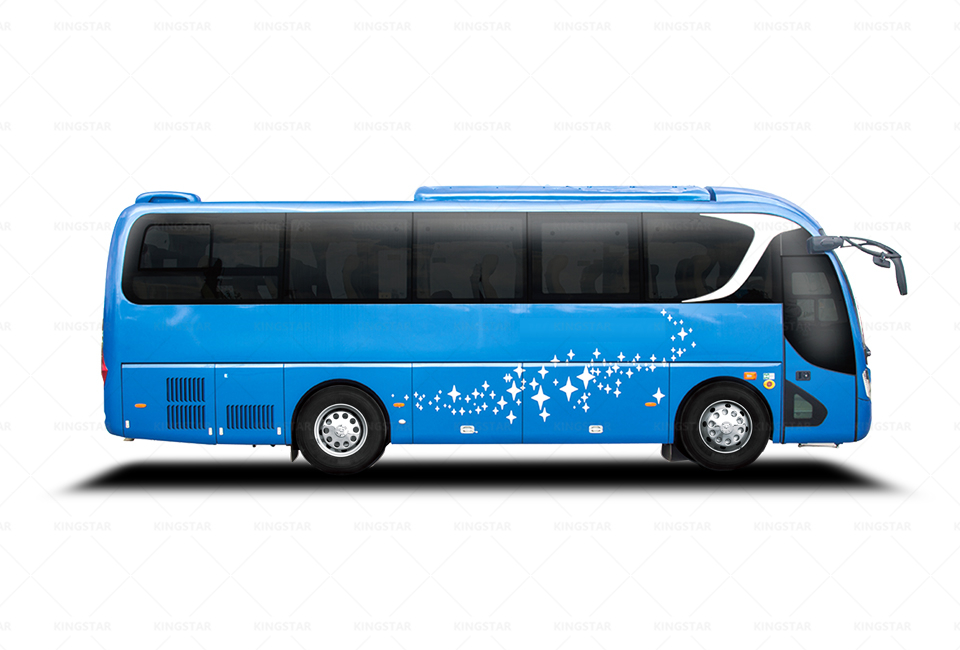

The Y9 series bus utilized the outstanding configuration of patented U-style monocoque body structure, high-strength zincizing square steel and engine with strong power and low energy consumption. Its exceptional quality inside and out renders this series bus a diamond start among the mid-short distance passenger transport.
| Model | Y9 |
|---|---|
| Dimension(mm) | 8895*2460*3360 |
| G.V.W(kg) | 12800 |
| Max. speed(km/h) | 120 |
| Body structure | Monocoque body structure |
| Clutch | φ395 diaphragm spring clutch |

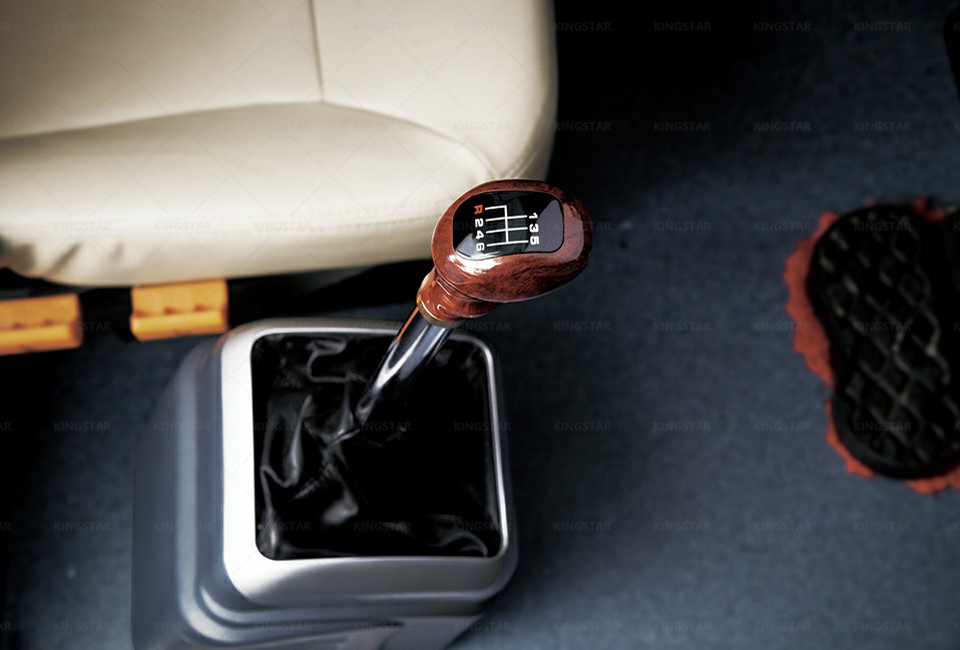

| Gearbox | 6-speed manual gearbox |
| Brake system | Dual circuit pneumatic brake, energy storage spring parking brake, ABS, retarder |
| Suspension system | Air suspension |
| Tire | 10R22.5 |
| Fuel tank (L) | 260 |

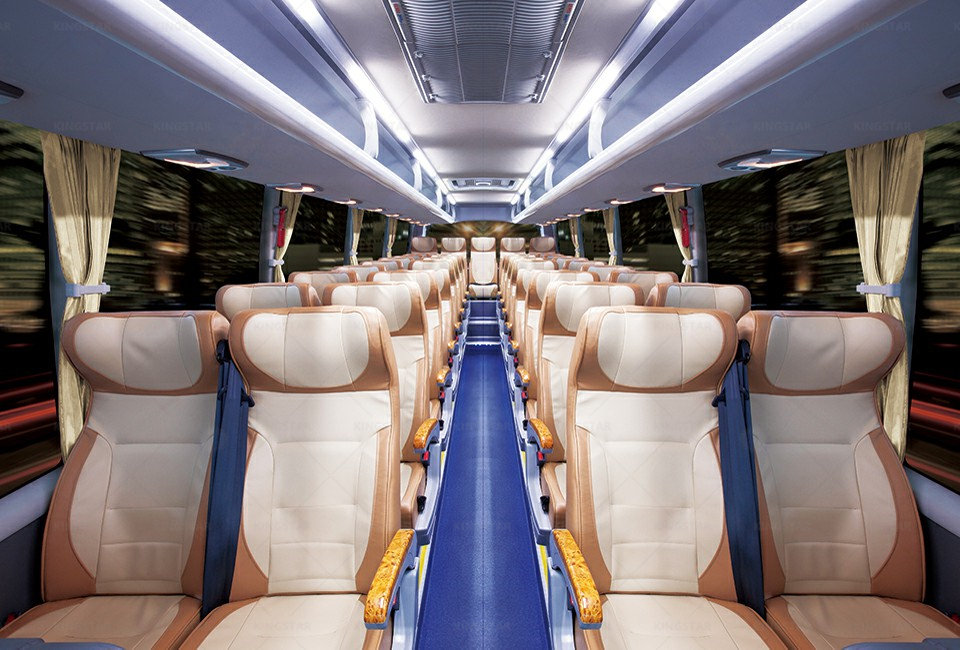

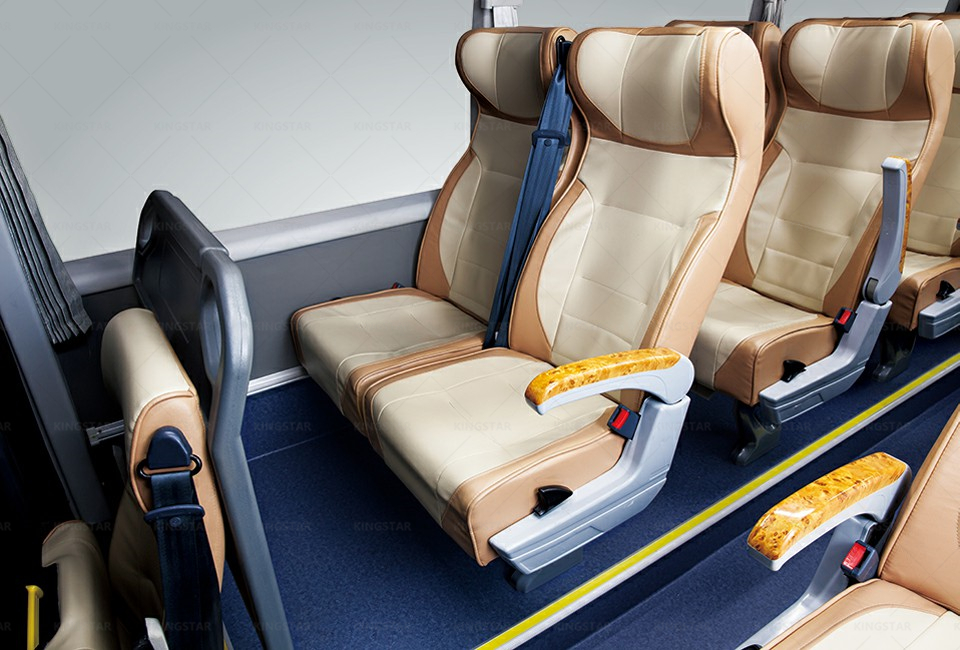

| Seats | 37+1 |

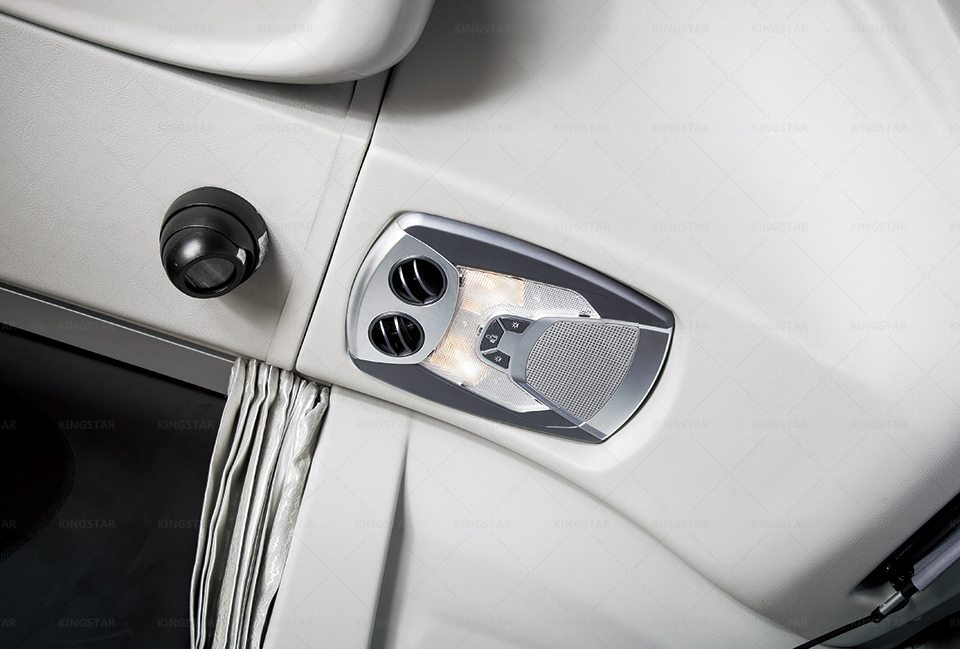

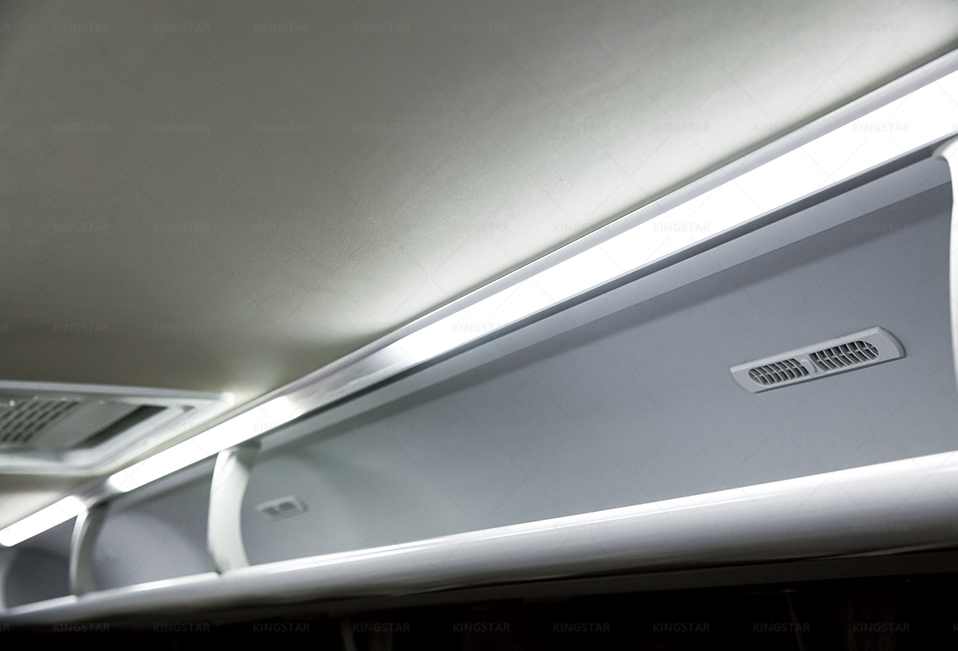

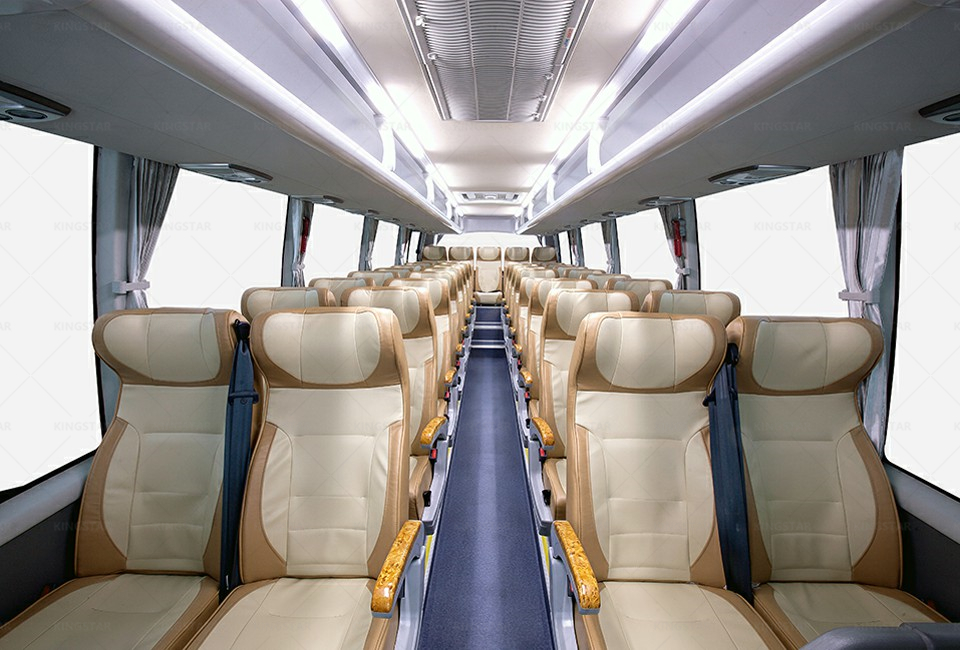

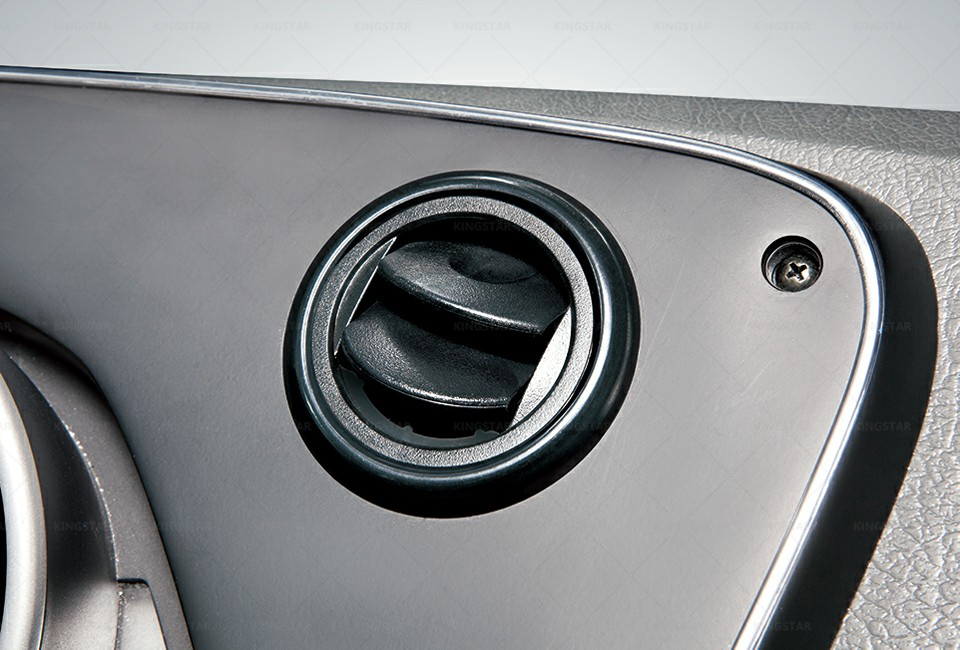

| Interiors | Integral luggage rack, reading lamp, air outlet, curtain, USB port |

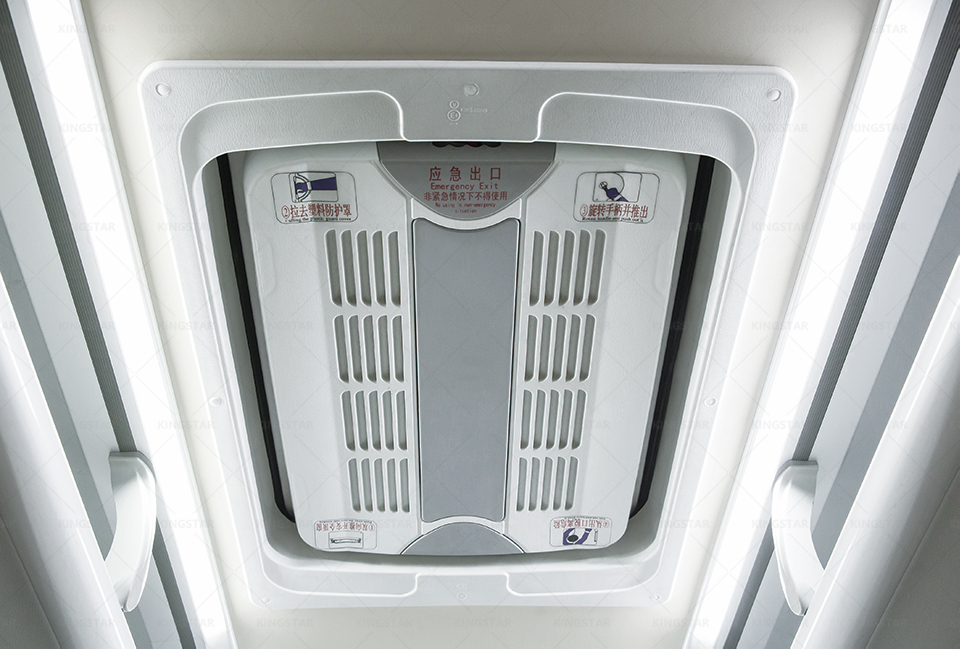

| Air conditioner (A/C) | Non-independent roof-mounted A/C (22000kcal) |
| Heating system | Independent water heating |

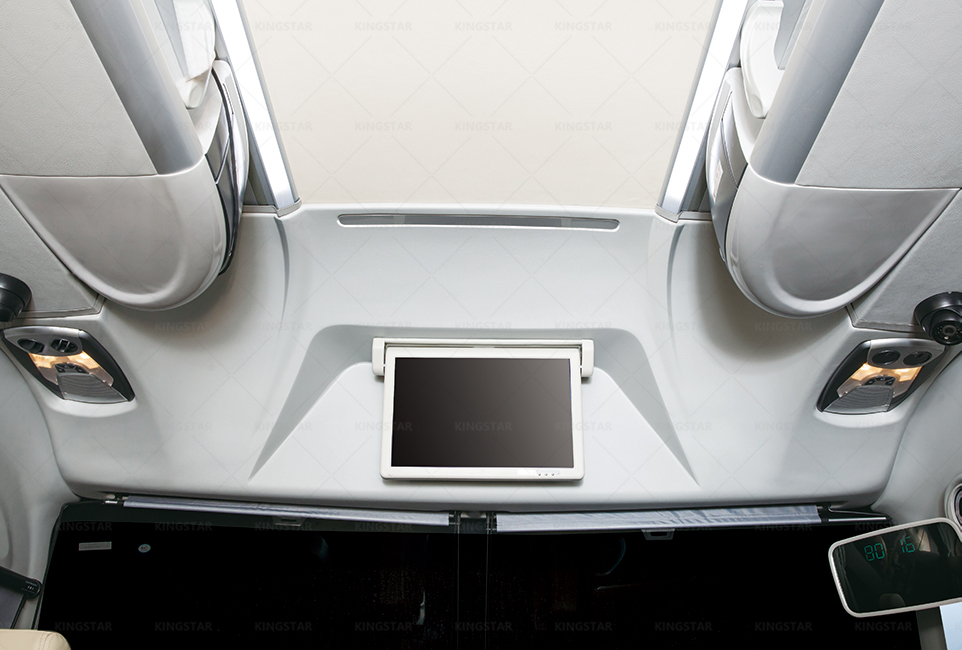

| Audio & video system | Multiple DVD player (MP5), one 19" LCD monitor |
