INTRODUCTION

● Electric motor: high response 30kW AC synchronous

● NEDC range: 250km

● Speeds: up to 100km/h

● 4 passengers, 5 doors

Safety and comfort for family using, Batteries, motors and electronic controls are protected by the iP67, Cage body, up to 980 MPA steel, High-strength door hinge 440 MPa strength, rare in the same class, Low-speed alarm, 1-30 km/h simulating vehicle engine sound, warning pedestrians, TPMS, showing tire condition at any time to ensure driving safety HAC, stay for 5 seconds to ensure safe start of the slope. Stylish, sporty, and avant-garde design. The fully enclosed intake grille runs through the left and right headlights, The lift-up style runs through the waistline for more tension and movement. Car refrigerators, air purifiers, vertical 7-inch high-definition large screens and more practical functions make the journey even more pleasant. Professional chassis and steering adjustment system, turning radius is only 3.75m, enabling easy cornering. The maneuverability is ahead of the same model, and it can travel freely between cities. The body is made of high-strength thick galvanized steel sheet, which has high impact resistance. E5 is the first to apply German fourth-generation door locks to electric vehicles, and it is safer to open the double-pull inside.

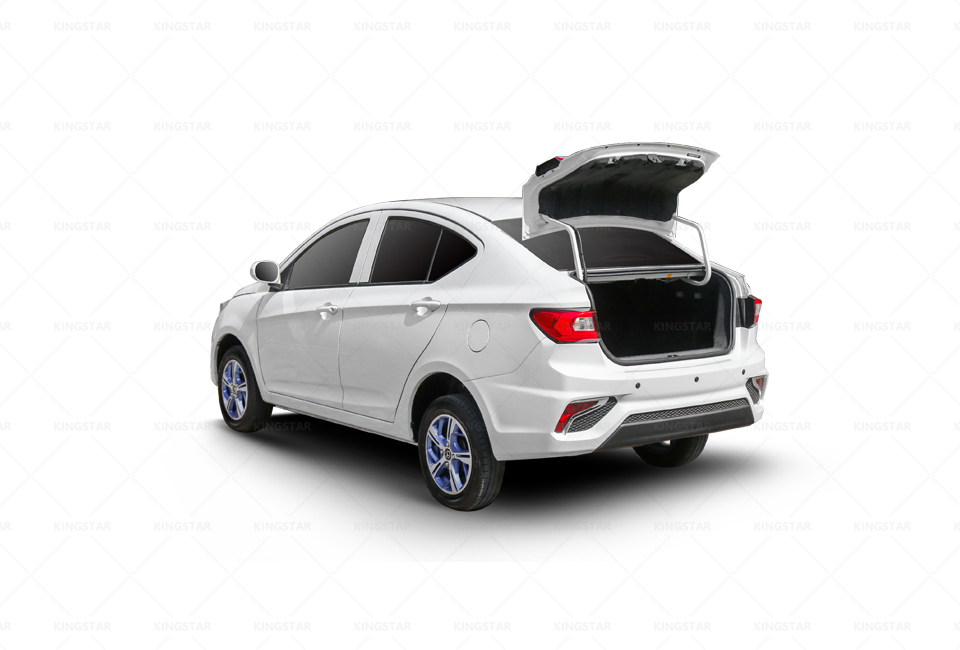

   EXTERIOR

请稍候...

   INTERIOR

Wait...

   SPECIFICATIONS & FEATURE

ModelE5
Basic infoL*W*H (mm)4055*1630*1510
Wheelbase (mm)2400
Curb weight (kg)1010
Max. speed (km/h)100
Range(km)255
Min. ground clearance(mm)120
PowerTypePMSM
Peak power(kw)30
Max. torque(N.m)150
Number of motor1
Drive modeFront mounted
Battery typelithium-ion battery
Battery Capacity (kW.h)25.55
Charging time (AC home charging)<12h
Battery heating system

    Transmission
Single speed   transmission
TransmissionFixed gear ratio
Gear shiftRotary gear shift

    Chassis
DriveFront drive
Front suspensionMacPherson strut
Rear suspensionTrailing   arm with lateral thrust rod dependent
Assist typeElectric   Power steering System (EPS)
Car bodyMonocoque
Energy recycling system

    Wheel/braking
Front brakerDisc type
Rear brakerDrum type
Parking brakerManual
Front tyre165/65 R14
Rear tyre165/65 R14
