● Adopting advanced electrophoretic coating production line to make anti-corrosion performance more higher.
● McPherson independent front suspension and five leaf springs rear suspension to making high carrying capacity.

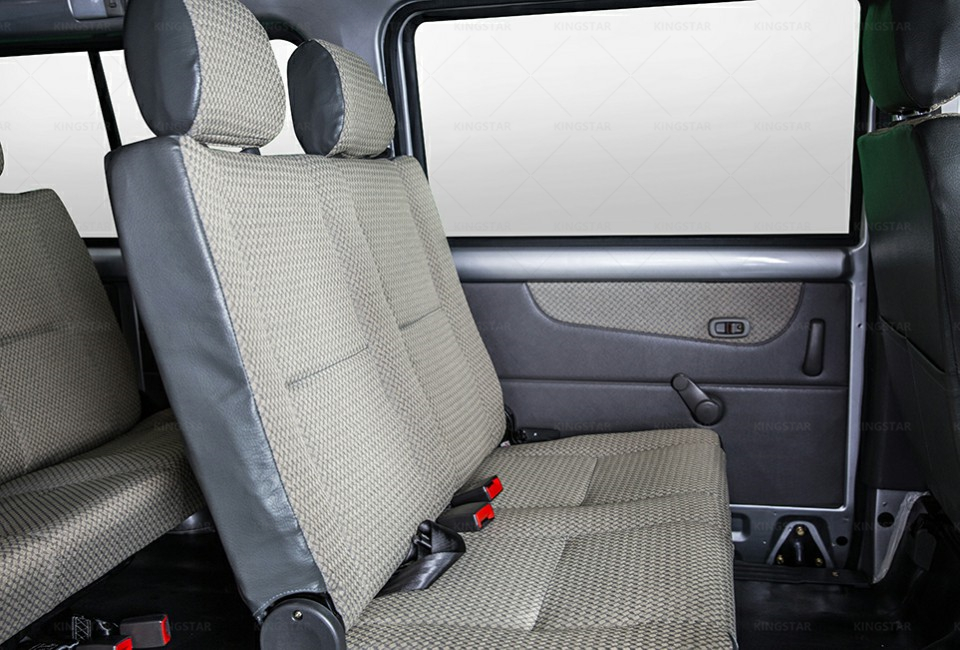

● Modular space design maximizing the utilization of limited space and meeting the different demand for driving, seating and loading. Seating capacity could be for 11 persons.
●High efficiency engine, more powerful and more fuel saving.
| Model | VC5 | |||
|---|---|---|---|---|
| Fuel type | Gasoline | |||
| Driving | 4x2, rear drive | |||
| DIMENSIONS & WEIGHTS | Overall length (mm) | 4330 | ||
| Overall width (mm) | 1650 | |||
| Overall height (mm) | 1915 | |||
| Wheel base (mm) | 2850 | |||
| Tread, front/ rear (mm) | 1390/1410 | |||
| Ground clearance (mm) | 160 | |||
| Curb vehicle weight (kg) | 1175 | |||
| Gross vehicle weight (kg) | 1865 | |||
| Seating capacity (persons) | 7-11 | |||
| Fuel tank capacity (L) | 45 | |||
| SYSTEM | Gearbox | Manual,5 speed and 1 reverse,synchronizing | ||
| Suspension | Front | McPherson independent suspension | ||
| Rear | Parallel leaf spring and absorber | |||
| Brake | Front/ Rear | Front disc rear drum brake system | ||
| Min. turning radius (m) | 5.2 | |||
| Tires | 175/70R14LT | |||
| Max. vehicle speed (km/h) | ≥130 | |||
| ENGINE | Technology source | SUZUKI | MITSUBISHI | |
| Displacement (cc) | 1300 | 1500 | ||
| Type | 4-cylinder in line, 4-stroke, DOHC, 16-valves | 4-cylinder in line, aluminum engine | ||
| Max. power (hp/rpm) | 86/6000 | 110 | ||
| Max. torque (N.m/rpm) | 108/4000-4400 | 138 | ||
| Compression ratio | 9.8:1 | 10:5:1 | ||
| Emission | Euro 4 | Euro 4 | ||
